Stormwater Drainage

Stainless Steel Floor Drains304 & 316L

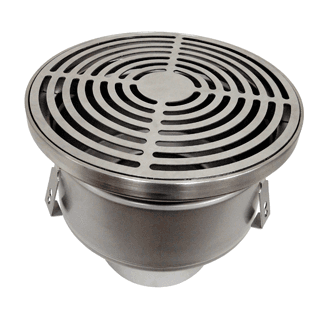

Point drains in 304 or 316L stainless steel with round and square tops for hygienic applications. Non-porous surfaces ideal for environments where bacteria growth is a concern.

Request Quote

Product Image

Technical Details

Product Specifications

Material
304 or 316L SS
Top Configs
Round & Square
Round Sizes
8", 12", 16"
Outlets
2" through 8"
Push-Fit
Optional PFO
Series Example
42650

Key Features

Fabricated 304 or 316L stainless steel
Round tops (8", 12", 16")
Square top configurations
Various body depths
Anchor tabs for secure installation
No-hub outlets
Perforated SS grate (standard)
Optional Push-Fit outlet (PFO)
Non-porous hygienic surface
Corrosion, heat, and impact resistant

Common Applications

Food processing
Commercial kitchens
Breweries
Pharmaceutical
Healthcare
Laboratories
Chemical plants
Clean rooms
Locker rooms
Laundries
Hospitals
Industrial facilities
Questions & Answers

SS Floor Drain FAQs

Common questions about Josam Stainless Steel Floor Drains

Josam stainless steel floor drains are available in 304 or 316L stainless steel, with 316L offering enhanced corrosion resistance for demanding environments.

Stainless steel floor drains are available with round tops in 8", 12", and 16" sizes, as well as square top configurations.

Yes, stainless steel floor drains are available with optional Push-Fit outlet (PFO) for connection to Josam's Push-Fit Drainage System.

Stainless steel offers non-porous surfaces for superior hygiene, greater life expectancy, corrosion/heat/impact resistance, and meets sustainable design requirements.

Need Hygienic Floor Drainage?

Josam stainless steel floor drains provide superior hygiene for demanding applications.
