ACO DrainPolymer Concrete Systems
The flagship ACO product line, ACO Drain is a modular polymer concrete trench drain system used globally for commercial and infrastructure applications. In the US the commercial range is sold as two families: KlassikDrain(K100 = 4", K200 = 8", K300 = 12") and the heavy-duty PowerDrain (S100K/S200K/S300K), spanning EN 1433 load classes A15 through F900.
Product Specifications
Key specifications for the ACO Drain polymer concrete trench drain system.
ACO Drain Sub-Products

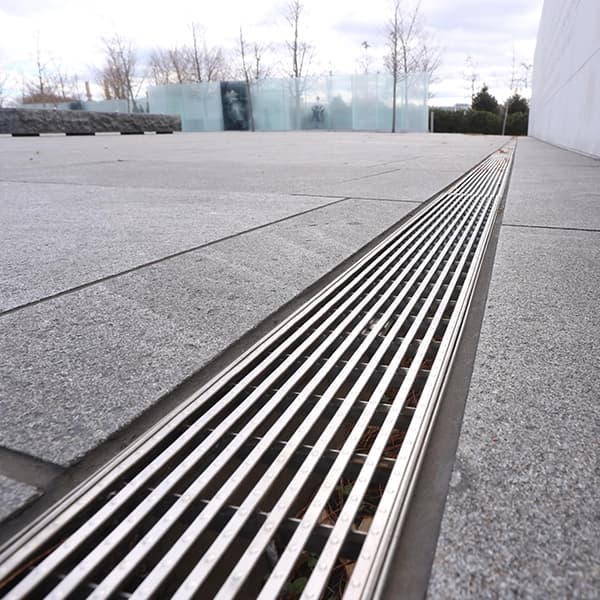

ACO KlassikDrain K100
4" wide general-purpose channel with galvanized steel (K100) or 304 stainless (KS100) edge rails. Rated up to EN 1433 Class E for commercial entries, plazas, and parking.
ACO KlassikDrain K200 / K300
8" (K200) and 12" (K300) wide channels for higher-flow commercial and light-industrial drainage where greater hydraulic capacity is required.
ACO PowerDrain S100K / S200K / S300K
Heavy-duty range with integrally cast ductile-iron edge rails, rated to EN 1433 Class F900 and airport-airside 200,000 lb proof load for industrial, port, and runway duty.
Key Features
Common Applications
Where ACO Drain Fits
KlassikDrain and PowerDrain are the polymer concrete answer to high-traffic surface drainage. Explore the matching product category and the projects where these channels are specified.
By Product Category
- Trench & channel drains — compare polymer concrete against HDPE and stainless options.
- Drainage grates — heel-safe, ADA, and load-rated grate styles for ACO channels.
By Application
- Parking structures and parking lots
- Airport aprons & runways (PowerDrain F900 duty)
- Loading docks
ACO Drain FAQs
Common questions about the ACO Drain polymer concrete trench drain system
In the US the ACO Drain commercial range is sold as two families. KlassikDrain covers K100 (4" wide), K200 (8") and K300 (12"). PowerDrain is the heavy-duty range — S100K, S200K and S300K — with integrally cast ductile-iron edge rails. (MultiDrain, KerbDrain and RoadDrain are UK/infrastructure names; in the US those map to the ACO Infrastructure program.)
KlassikDrain (K100/KS100) uses galvanized steel or 304 stainless edge rails and is rated up to EN 1433 Class E for pedestrian-to-industrial commercial use. PowerDrain (S100K/S200K/S300K) uses integrally cast ductile-iron edge rails, is rated to EN 1433 Class F900, and is airport-airside proof-tested to 200,000 lb for the heaviest duty.
ACO Drain spans the full EN 1433 range — A15 (~3,372 lb, pedestrian) through F900 (~202,328 lb, airport aprons and ports) — and the US catalog cross-references AASHTO H-20/H-25 and HS-20/HS-25 loading. KlassikDrain reaches Class E600; PowerDrain reaches Class F900.
ACO Drain features a patented built-in continuous slope design that provides up to 130 ft (40m) of sloped channel in a single run. This eliminates the need for stepped installations and ensures optimal water flow to outlet points.
ACO Drain channels are manufactured from polymer concrete (also called resin concrete), which combines mineral aggregate with polymer resin binders. This material offers superior chemical resistance, high compressive strength, a smooth hydraulic bore, and excellent durability compared to traditional concrete.
Ready to Specify KlassikDrain or PowerDrain for Your Project?
Whether you need KlassikDrain for commercial paving or PowerDrain for airport and industrial duty, our team can match the right channel, edge rail, and grate to your load class. For highway, bridge-deck, and combined kerb drainage, see ACO Infrastructure (MultiDrain, KerbDrain, RoadDrain), or pair surface collection with ACO StormBrixx detention.
