Push-Fit Pipes316L Stainless Steel

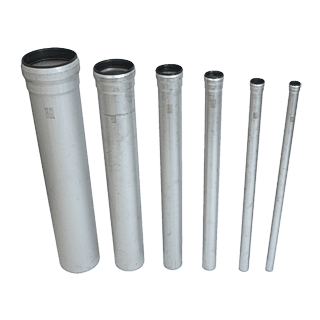

Standard 316L stainless steel push-fit pipes covering every nominal size from 1-1/2" to 8" in 8 lengths from 0.8 ft to 9.8 ft. Lubricate the EPDM gasket and push—no welding, solvent, or special tools—to build above- or below-ground drainage runs tested for gravity and vacuum at a pressure rating at least 4x that of other stainless steel push-fit systems.
Product Specifications
Key Features
Common Applications
Push-Fit Pipe FAQs
Common questions about Josam Push-Fit Pipes
Josam push-fit pipes are available in 1-1/2", 2", 3", 4", 6", and 8" nominal pipe sizes.
Push-fit pipes come in 8 different lengths from 0.8 ft to 9.8 ft, designed for minimal field cuts.
Simply lubricate the gasket and push the pipe into the fitting. The EPDM gasket creates a tight seal tested for both gravity and vacuum applications.
The EPDM gasket withstands temperatures up to 248°F, making it suitable for hot soil applications.
Where 316L Push-Fit Pipes Are Used
Related product types
- Stainless floor drains with PFO — connect drains directly to the push-fit system.
- Trench drains — linear collection feeding the push-fit waste line.
Common applications
- Hospitals and pharmaceutical — plenum-rated, no-weld 316L piping.
- Food & beverage processing — hot-soil-compatible, direct-burial lines.
- Hotels & resorts — fast-install drainage stacks for high-rise builds.
Need Stainless Steel Push-Fit Pipes?
Pair these spec-grade pipes with push-fit bends and branches to build a complete 316L stainless system. They connect to stainless steel drains via the Push-Fit Outlet (PFO) on Josam stainless floor drains.
